Siege Warfare



Those of you that read my previous articles will know that my interest is in Horse drawn Farm Vehicles and Implements. However I do occasionally get diverted. Recently I was given a new old stock kit for a medieval Siege Engine.



It was aimed at an 8 year old with responsible adult supervision which was my first problem! The kit consisted of pre-cut wood sections and plywood.  The wood was a reasonable quality but the plywood was questionable. However I persevered and constructed the kit which was relatively simple. Butt jointed wooden pieces were strengthened by the insertion of panel pins otherwise the model would have lacked strength. The principle employed is a counter weighted arm with a sling that a missile could be placed in. It has produced a simple working model which is capable of firing peanuts across the dining room table.



























This was for a non-working model. I decided to follow the general direction of the plan but to modify it to make a working model built from scratch. I used some beech from an old armchair. The frame was strengthened by using hidden mortice and tenon joints with panel pins where necessary. The Onager works on the principle of a torsion spring. In the Roman version this would have been a heavy rope twisted through the frame and holding the throwing arm. I used string both for the torsion spring and the buffer on the top cross piece that the arm strikes as it releases the missile. Torsion was applied by brass bar rotated and locked in position by a pin through the chassis. A rope roller is used to return the arm to the base position after firing. The wheels are three piece construction which would originally have been secured together using wrought iron. This working model is also capable of firing peanuts or small pebbles.

























                                                    It was an interesting diversion from my usual hobby.

                                                                               John Tonen

                                                                                 July 2024

JT Picture1.jpg July 2024.jpg
JT Picture 2 .jpg July 2024.jpg
JT Picture3.jpg July 2024.jpg
JT Picture4.jpg july 2024.jpg

The Trebuchet peanut slinger

For some time I have been interested in Roman Artillery. I found a copy of a 1948 Hobbies weekly which had plans for a Roman Onager.

The Onager

This working model is also capable of firing peanuts or small pebbles.

                                      Sleds and Wheelcars

This is a time of year when we may see children enjoying themselves in the snow with sledges- depending upon climate change variables! How many of us realise that sleds have been a part of horse drawn farming practice for hundreds of years. Indeed today farmers still use bale sleds towed by tractors to move bales around their fields.

The nature of hill farms in Wales meant that in some areas the use of carts and waggons was not feasible as once loaded they were liable to overturn on steep slopes, hence the need for sleds. There a number of variations I will cover in this article.

The general purpose sled or in Welsh ‘Car Llusg’ generally consists of two runners with a boarded surface creating a platform upon which Peat, Bracken (used for animal bedding) or Hay from upland pasture could be gathered. The example shown was measured on a farm in Penmaenmawr in north Wales and has metal runners due to the stony nature of the hillside.



                                                                                                              Such sleds were relatively small as once loaded

                                                                                                                    it was dead weight for the horse to pull.

In order to carry manure or lime to upland pasture a tumbril sled or in Welsh ‘Cardel’ was used. Many farmers preferred to use this where lime was concerned as whilst shovelling the lime it was below eye level unlike a conventional cart where it could blow back into the face. The example shown is from Llanbrynmair, Montgomeryshire. It features sacrificial runners usually of Beech simply pegged in place which the farmer could easily replace when worn.

Also used were specific harvest sleds also referred to as Car Llusg

which were designed to bring in the corn harvest from upland fields.

These were more elaborate and able to carry a greater load and

were often designed with a sloping construction that reflected the

nature of a particular locality.

























This shows the model under constriction, highlighting

the 28 through mortices and at least 16 pegged joints.

Much simpler than a cart to build yet a

complicated bit of work at 1/12th scale.

Where are the wheels?

Now this section of the website is entitled ‘Other Wheels’ and you may well be asking where the wheels are? This brings us to a most unique Welsh horse drawn farming vehicle the Wheelcar. This is peculiar to Radnorshire although some usage in Shropshire is also known. The vehicle comprises a body some 14 feet in length the front part of which is shaped and metal shod to be in constant contact with the ground. The two large cart wheels are fitted to an axle which is fixed to the top of the side members of the Wheelcar thus reducing the centre of gravity. Due to its size this vehicle has a considerable carrying capacity.

















When loaded it would be drawn by a horse attached to the end in contact with the ground by trace chains and drawn forward down the slope. To prevent the vehicle running away and into the horse it was not unusual to place a timber baulk on the ground in front of the runners. Where necessary this technique was used for all sleds in use on farms. An additional feature of the Wheelcar was the ability to chain the wheels to prevent them turning thus creating a very large sled. By reputation it was a difficult vehicle to control and its nickname was ‘smellpost’ as it was tricky to control through gateways and usually collided with a gatepost.

The other feature of the Wheelcar to note is the wheels are not fitted with a continuous hooped rim but metal segments known as ‘strakes’ Given the likely wear when skidding the vehicle it would be easier to replace a single ‘strake’ than a whole hooped rim.

For a little more information on this unique vehicle I refer you to my friend Stuart Fry’s website https://farmhistory.uk/2020/03/11/gamboling-along/

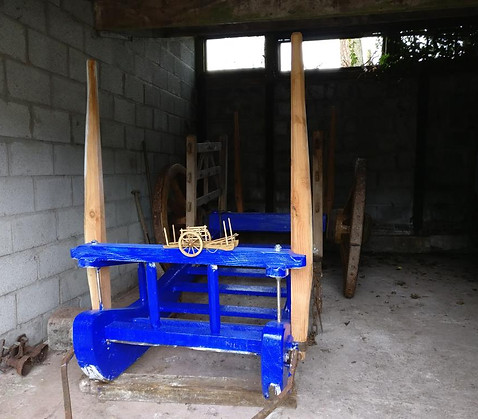

This photo shows one of my models on the front crossbar of a Wheelcar in a private collection and gives you an idea of how the scale of 1” to 1ft relates to the full size vehicle.

The original vehicle was built in Llanbister Road which is one of the stations on the Heart of Wales railway line. If you ever ride the line in the area of Llanbister Road the rolling hillsides give a clear indication of why the use of sleds and Wheelcars were important in that area.

If you have not ridden the Heart of Wales line I recommend it the scenery is well worth seeing. I also found it amusing that many stations including my own in Ammanford are request stops where you have to signal the driver to stop.

January 2022

JT Sled Picture2.jpg
JT Sled Picture3.jpg
JT Sled Picture4.jpg
JT Sled Picture5.jpg
JT Sled Picture6.jpg
